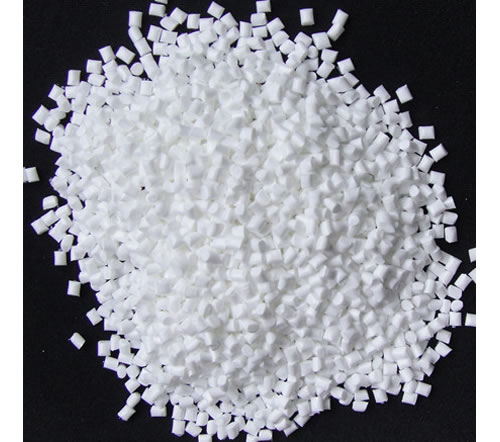

Halogen Free Flame Retardant PP+EPDM Granules（1.6 mm V2）

Introduction
As the base resin, PP is uniformly mixed with halogen-free fire retardant, glass fiber, EPDM and processing modifier in a high speed. After twin-screw kneading granulation, halogen free flame retardant compound (PP+EPDM granules) is formed. Its flame retardant grade is UL94 V-2 (1.6 mm). This flame retardant plastic granule possesses excellent mechanical strength, excellent resistance to stress cracking, heat resistance and good workability. It is extensively applied in home appliances, electronic appliances and other fields. Our company is a professional supplier of flame retardant EPDM halogen free flame retardant compounds in China. Our halogen free flame retardant plastic granules can also be used on cable sheath for subway, mine, ship and warship applications.

Applications
Halogen free flame retardant PP+EPDM granules are widely used for switching components, thermostats, relay housings, circuit breakers, low voltage electrical appliances shell, TV or monitors, business computers, etc. EPDM halogen free flame retardant compound is also used for electroplating processing.

Features
1. This flame retardant plastic granule (PP+EPDM granules) features low water absorption and good overall performance.
2. Our halogen free flame retardant compounds (1.6 mm V2) have excellent machining property and good flame retardant property.
3. Electrical accessories meet all stringent requirements.
4. INFO flame retardant plastic granules can be used under high humidity environments.
5. Non-halogen halogen free flame retardant compounds have excellent heat resistance.

Process
Halogen free flame retardant plastic granules can be extruded and molded by a general screw extruder. The extruding velocity and temperature can be adjusted appropriately according to specific requirements.

Packaging Specification
We use kraft bags with plastic bag lining to package this halogen free flame retardant compound.

Parameters of Non-Halogen Flame Retardant Plastic Granules (PP+ EPDM Granules)

Properties	ASTM	Test Condition	Unit	Typical Values
Physical Properties
Density	D-792	23℃	g/cm3	0.95
Melt Flow Index	D-1238	230℃ / 2.16 kg	g/10min	3-6
Mold Shrinkage	D-955	23℃	%	1.2-1.5
Mechanical Properties of Halogen Free Flame Retardant Compound
Tensile Strength	D-638	10 mm / min	MPa	26
Elongation at Break	D-638	10 mm / min	%	200
Flexural Strength	D-790	2 mm / min	MPa	45
Flexural Modulus	D-790	2 mm / min	MPa	950
IZOD Impact Strength Notched	D-256	3.2 mm, 23℃	KJ/m2	15
Thermal Properties of Non-Halogen Flame Retardant Plastic Granules (PP+ EPDM Granules)
Heat Distortion Temperature	D-648	0.45 MPa, 6.4 mm	℃	95
Vicat Softening Temperature	D1525	1 kg, 120℃/h	℃	140
Others
Flammability	UL-94	1.6 mm	—	V2

Note: Typical values are the average data from laboratory. They are only for use reference and are not the standards for products.

Processing Conditions of Halogen Free Flame Retardant Compound (PP+ EPDM Granules)

		Unit	Range
Melt Temperature		℃	160-200
Barrel Temperature	Rear	℃	160-180
	Center	℃	170-190
	Front	℃	180-195
Mold Temperature.		℃	50
Mold Pressure		Pre-dry Requirements	80-100℃, 2-4 h

Note: The above-mentioned data is just for injection molding machine. According to different models, molds and specific requirement of products, we can make appropriate adjustments.

Shanghai Info New Material Technology Co., Ltd. is a high-tech enterprise engaged in research and development, sale and technical service of halogen free flame retardant compounds (PP+EPDM granule). Oriented by customers’ demands, our company is specialized in producing various high-performance and functional modified plastic particles, sheets and film product. With strong R & D strength, we focus on the development and application of polyolefin (PP/PE), nylon (PA) modified products and composite materials. We make use of inexpensive materials instead of expensive engineering plastics to provide high quality flame retardant plastic granules for customers. Our halogen free flame retardant compounds have been exported to mainland, HongKong, Macao and Taiwan regions, North America, South America, Western Europe, Eastern Europe, East Asia, Southeast Asia, Middle East, Africa, Oceania, etc.
